1 August 2006
The replacement engine arrived today from Beta Generators. It's purchase is a major step forward in the restoration of the locomotive. The engine will be stored under cover until such a time it can be installed into D8233 |
 |

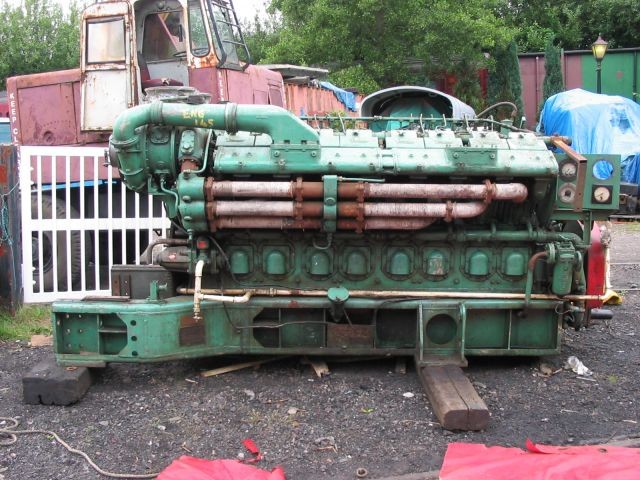

| The replacement Paxman 16YHXL engine on site at Bury. © C15PS |
 |
| Above : The original BTH generator will be fitted HERE after its been
removed & overhauled © C15PS |
 |
| Above :
An overhead view showing cylinder heads, manifolds and fuel
injection system. © C15PS |
 |
| Above :

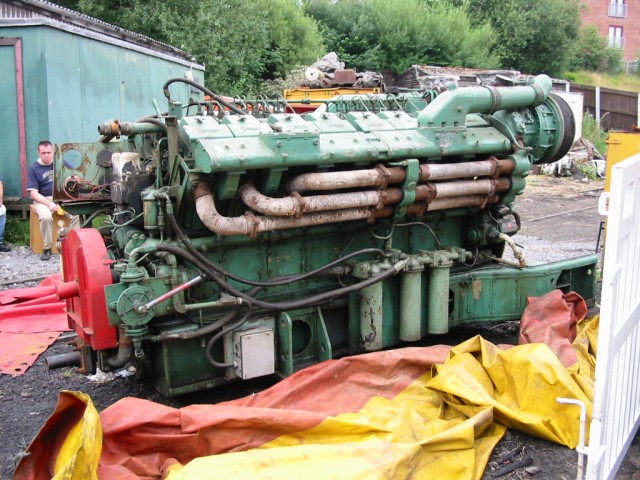

The L/H side of the engine showing the repositioned and
improvised oil filter system. © C15PS |
 |
| Above :
The front of the engine with big red crank shaft cover and dark
blue govenor fitted. © C15PS |
 |
| Above :

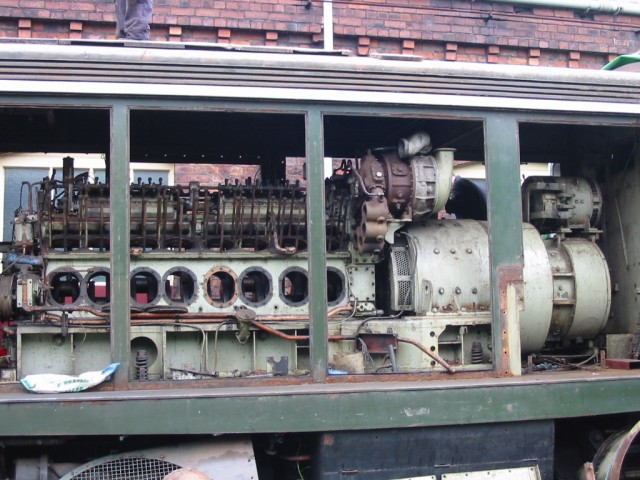

A view of the stripped remains of the Paxman fitted to the loco
for comparison. © C15PS |
